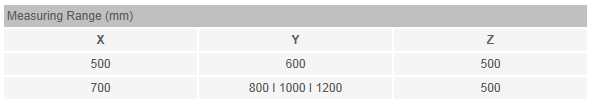

Manual 3D coordinate measuring machine XCite

XCite is the new manual 3D coordinate measuring machine for quick verification of simple parts. It enables the economical entry into the world of metrology. The compact sensor collects probe points, which are stored and evaluated with the powerful measuring software Metrosoft QUARTIS. Thus, reliable measurement values for different measuring tasks are generated with minimum effort.

The XCite offers easy operation and an attractive starting price. The all-round system is suitable for quality control of components as well as for classic measurement of work pieces. It is an inexpensive alternative to gauges or multi-point measurement systems. Due to this properties the measuring machine can be also used in the production measurement.

Features and Benefits
• XCite CMMs manufactured from granite are free of internal tensions and extremely wear resistant
• Space saving compact design for greater flexibility
• Data compatibility with all other WENZEL systems
• Fine tuning for each axis and individual axis locks allow accurate positioning and precise detection
• The guide way of the Y-axis is fitted with bellow type covers to protect against contamination from dust and dirt

3D coordinate measuring machine LH 54

The CNC-bridge design measuring machine LH 54 is the perfect solution for all common measurement tasks. It is used for quality control, process control, production control, the development of prototypes and reverse engineering.

The LH 54 is capable for a variety of probe head and scanner combinations. From fixed to motorized and adjustable probe heads. From simple measuring probes to high-precision and optical probe systems. The LH is suitable for demanding measuring tasks, fast form checks, extreme accuracy and scanning of any 2D and 3D curves and outlines.

The LH 54 stands out due to an excellent price-performance ratio and flexible applications.

3D coordinate measuring machines from WENZEL are a safe investment because they are very durable and versatile.

Features and Benefits
• Touch Probe & Scanning Applications
• Impala Granite CMM structure for optimum thermal stability
• Wide air bearing spread for improved stability
• Once piece ultra-thick granite base plate hand lapped to DIN 876/0 ensures uniform heat distribution
• Integral Y-axis guide-way machined directly into one piece granite plate improves CMM accuracy and repeatability
• Bellows covers fitted to both X and Y axis for the dirt protection

3D coordinate measuring machine Smart

The Smart is a shop-floor 3D coordinate measuring machine for a wide range of small and medium-sized components and can be supplied with touch trigger, scanning or optical probe systems. The Smart is used in different industries like mechanical engineering, automotive or plastics industries.

The CMM is stable in temperature, all guideways are encapsulated and protected against contamination. So the Smart could be used even in very rough environments. The measuring volume is freely accessible from three sides. Another advantage is the small footprint. The installation is very easy, because there is no air supply required.

Features and Benefits
• Touch Probe & Scanning Applications
• Outstanding dynamics
• Integrated Controller - Rear Mounted
• Optional pneumatic vibration isolation system
• Enclosed steel support base; pallet truck access providing mobility
• Bellows covers fitted to both X and Y axis for the dirt protection
• Factory-set Z axis position to maximize effective Z measuring range when using fixtures

3D coordinate measuring machine XOrbit 55

The WENZEL XOrbit is the ideal coordinate measuring machine, wherever the core aspects of measuring are required and where rapidity and ease of use are in demand. It can be used for checking incoming goods and throughout the production cycle until final inspection since it fulfils all major demands. Whether for individual or serial measurements, XOrbit is suitable for universal applications.

The XOrbit 55 is WENZEL’s global CMM and is our most price efficient CNC model. It is a cost effective derivative of the world´s renowned WENZEL LH series. XOrbit utilizes the industry standard Renishaw heads, touch probe and scanning probes.

XOrbit is the perfect CMM for companies purchasing their initial coordinate measuring machine, considering a 2nd user unit, or for the larger production operations needing to distribute multiple CMM’s. XOrbit has the optimum price/performance values.

Features and Benefits
• Touch Probe & Scanning Applications
• Granite CMM structure for optimum thermal stability
• Wide air bearing spread for improved stability
• Once piece thick granite base plate hand lapped to DIN 876/0 ensures uniform heat distribution
• Integral Y axis guide-way machined integral into one piece granite plate improves CMM accuracy and repeatability
• Bellows covers fitted to Y axis for the dirt protection

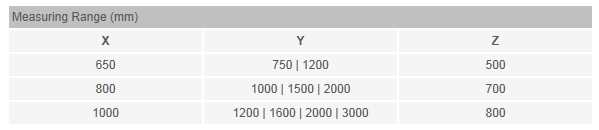

3D coordinate measuring machine LH

Precise, dynamic and reliable. The LH is a universal and flexible instrument for different applications. The revolutionary design of the new LH offers high mechanical accuracy, perfect ergonomics and dynamics. The new generation of LH is equipped with an incremental measuring system, which has a fine grating period, and excellent dirt immunity. As a result best position resolution and stability at high speed for all linear axes are possible.

Intelligent software and accessory options and a comprehensive service package complete the top LH CMM concept.

The CNC-bridge design measuring machine LH Standard is the perfect solution for all common measurement tasks. The machines of the LH Series are being used for quality control, process control, production control, the development of prototypes and reverse engineering. From miniature gears to rocket building, in small agile shops, at innovative mid-size enterprises or world-famous conglomerates - or simply wherever high measuring requirements define the demands.

The LH machines are capable for a variety of probe head and scanner combinations. From fixed to motorized and adjustable probe heads. From simple measuring probes to high-precision and optical probe systems. The LH is suitable for demanding measuring tasks, fast form checks, extreme accuracy and scanning of any 2D and 3D curves and outlines.

Features and Benefits
• Touch Probe & Scanning Applications
• Identical thermal behavior of granite in all axes ensures the intrinsic accuracy of the new LH generation
• High-resolution scales provide accurate positioning and precise results
• Accurate detection of free-form surfaces and geometric elements with innovative sensor technology
• Intelligent algorithms and interconnection technologies of the WENZEL controller transmit large amounts of data very quickly
• The guide ways of the X- and Y-axes are fitted with bellow type covers to protect against contamination from dust and dirt
• An innovative drive system, bearing and guide way technologies provides low wear of the base material
