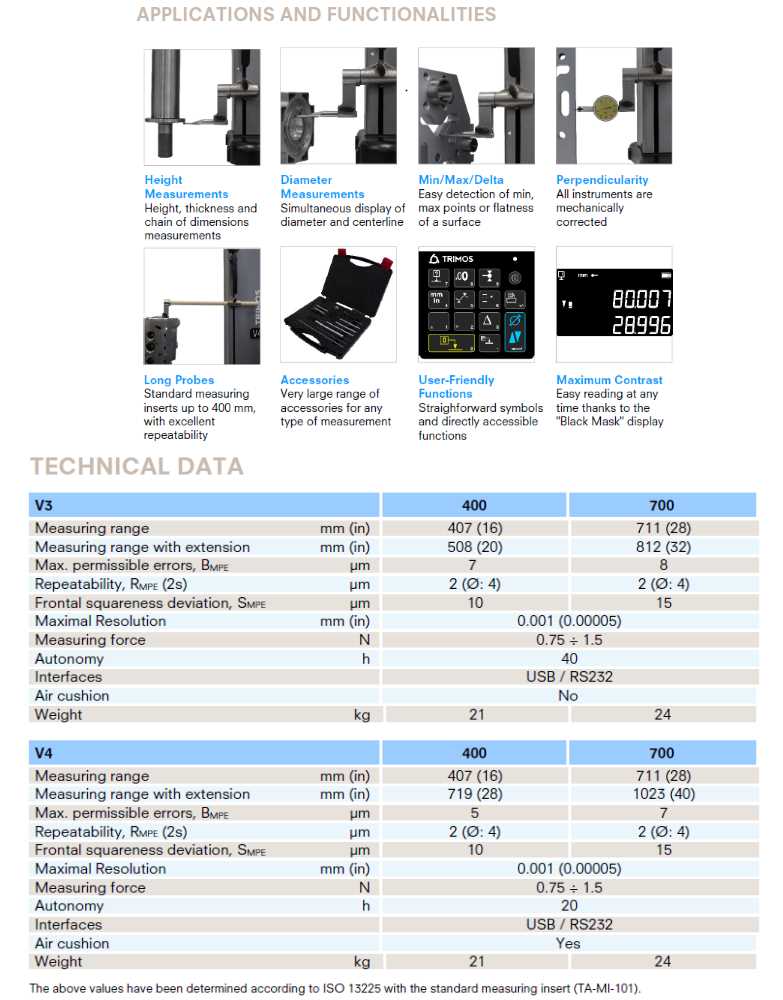

V3 / V4

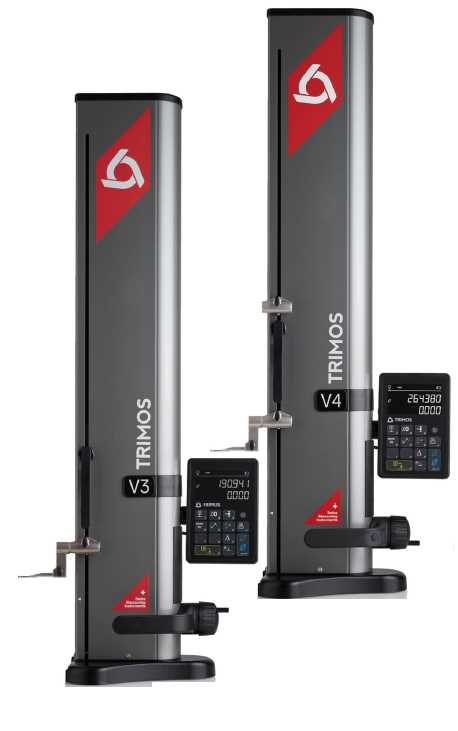

The V3 and V4 vertical measuring instruments have been developed
for the most difficult workshop environments.
Manufactured in their entirety in Switzerland, they will guarantee a robust,
precise and reliable product on the long run.
For more than 40 years, Trimos philosophy has been to offer easy-to-use
instruments that are very efficient in production environment.
The display unit provides functions that are directly accessible and depicted
with symbols easy to understand.
This allows for easy and quick handling even by unqualified personnel.
The large 2-line display offers an exceptional contrast in all lighting conditions,
an unique characteristic currently on the market.
|
|
- MEASURING RANGES 400 and 700 MM
- EXTREMELY EASY TO OPERATE
- ELECTRONICALLY ADJUSTABLE MEASURING FORCE
- STANDARD PROBES UP TO 400 MM
- VAST RANGE OF ACCESSORIES
- ALL ADJUSTMENTS POSSIBLE WITHOUT TOOLS
- RS232 and USB INTERFACES
|
| |

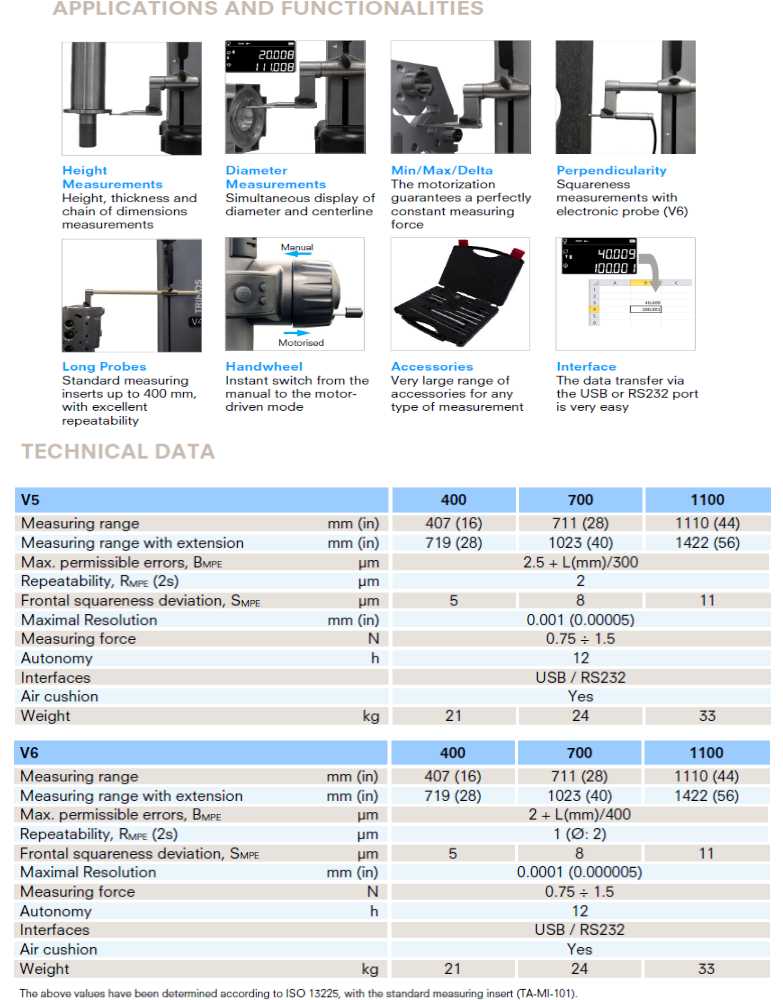

V5 / V6

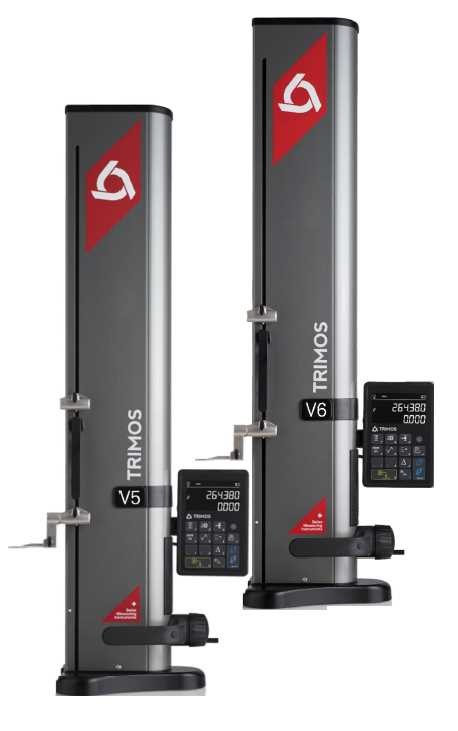

The vertical measuring instruments V5 and V6 are the descendants of the
lengendary V+ line, from which thousands of units have already been sold
all over the world and are universally recognised for their ease of use and high quality.
The V5 and V6 represents a consolidation of know-how accumulated over the last 40 years.
The prominent display and the user-friendly functions offer exceptional ease of use
It is also equipped with a revolutionary displacement handwheel
which offers the user a choice of the displacement in manual or motor-driven mode
|
|
- MEASURING RANGES 400, 700 and 1100 MM
- EXTREMELY EASY TO USE
- ELECTRONICALLY ADJUSTABLE MEASURING FORCE
- MANUAL OR MOTOR-DRIVEN DISPLACEMENT
- VAST RANGE OF ACCESSORIES
- STANDARD PROBES UP TO 400 MM
- ALL ADJUSTMENTS POSSIBLE WITHOUT ADDITIONAL TOOLS
- RS232 and USB INTERFACES
|
| |

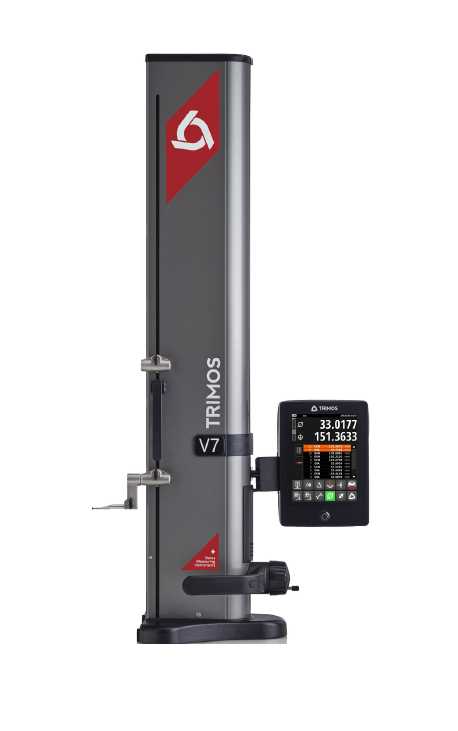

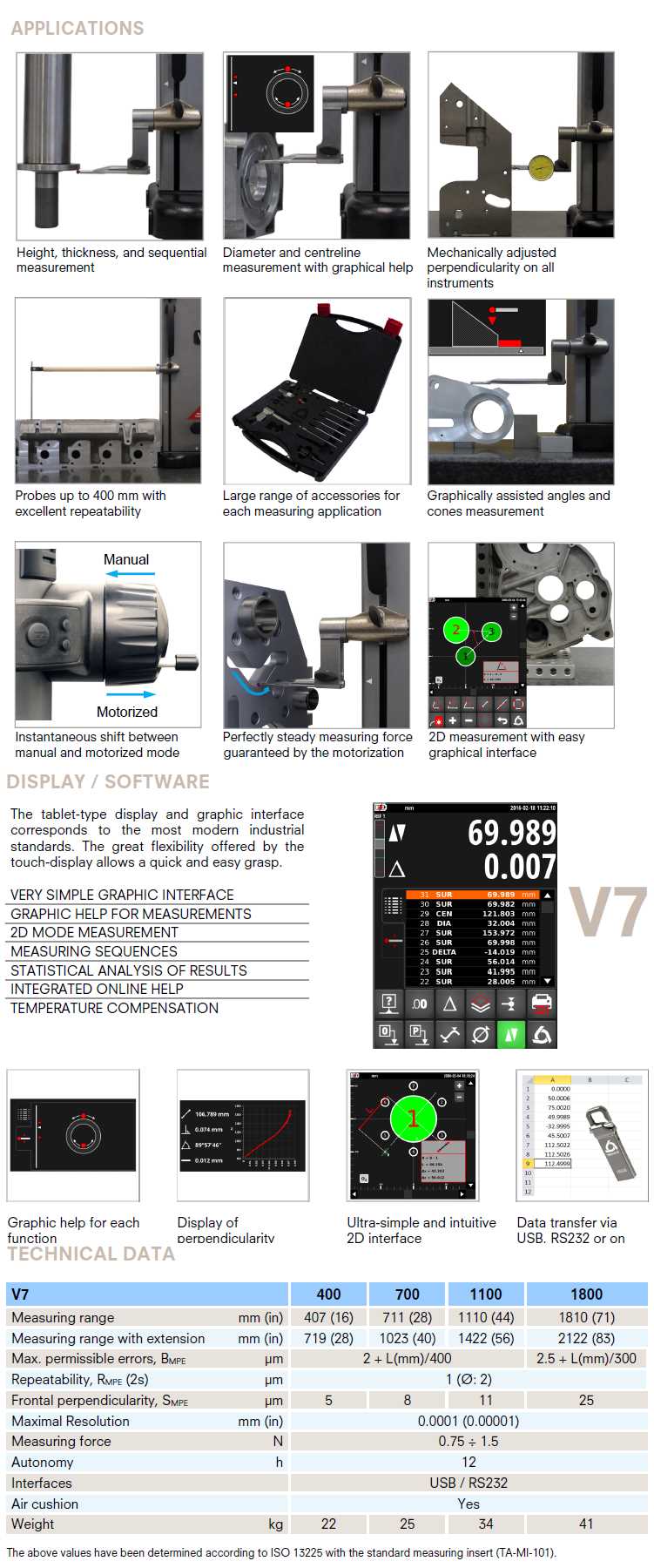

V7 - 2D
The V7 height gauges combine technological innovation and tradition.
With their touch-display and lateral insert holders, which have been proven
their worth for decades, the V7 is ranked as the universal instruments for the workshop.
The touch display allows a maximum simplified use with no superfluous information being
displayed giving only easy and mandatory functional buttons built to handle complex 2D,
programming and statistical calculations.
It results in extremely high level ease of use and substantial increase in productivity.
|
|
- MEASURING RANGES 400 to 1800 MM
- SIMPLE AND EASY TO USE GRAPHIC INTERFACE
- ELECTRONICALLY ADJUSTABLE MEASURING FORCE
- MANUAL OR MOTORIZED DISPLACEMENT MODE
- 2D, PROGRAMMING AND STATISCAL CALCULATIONS
- LARGE RANGE OF ACCESSORIES
- ALL ADJUSTMENTS POSSIBLE WITHOUT ADDITIONAL TOOLS
- RS232 and USB INTERFACES
|
| |

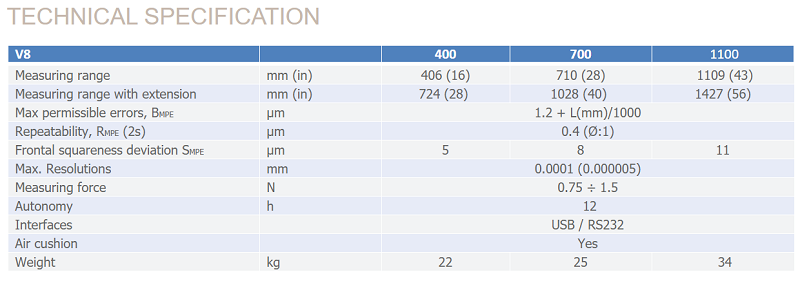

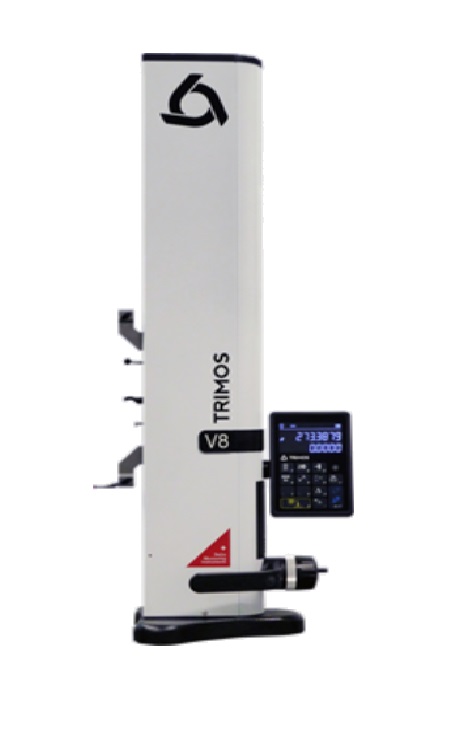

V8
The mechanical design and delivery scope of the V8 are identical to the V9.
It shares the features that made the model V9 so successful: extreme precision and repeatability,
high resolution, and Swiss made finish. What is to underline about this new model is
its specific handle for fine adjustment. Trimos developed this fine adjustment to answer to
specific applications requiring a fine adjustment of carriage position.
The V8 guarantees, like its predecessors, an extremely easy use with great robustness,
flexibility and extreme precision.
The large 2-line « Black Mask » display of the V8 offers an exceptional
contrast in all lighting conditions. The display provides functions that are directly
accessible and depicted with symbols easy to understand.
|
|
- MEASURING RANGE 400 to 1100 MM
- SPECIFIC HANDLE FOR FINE ADJUSTMENT
- MANUAL DISPLACEMENT
- EXCEPTIONAL PRECISION LEVEL
- LARGE RANGE OF ACCESSORIES
- RS232 and USB INTERFACES
- WIRELESS DATA TRANSFER (OPTIONAL)
|
| |

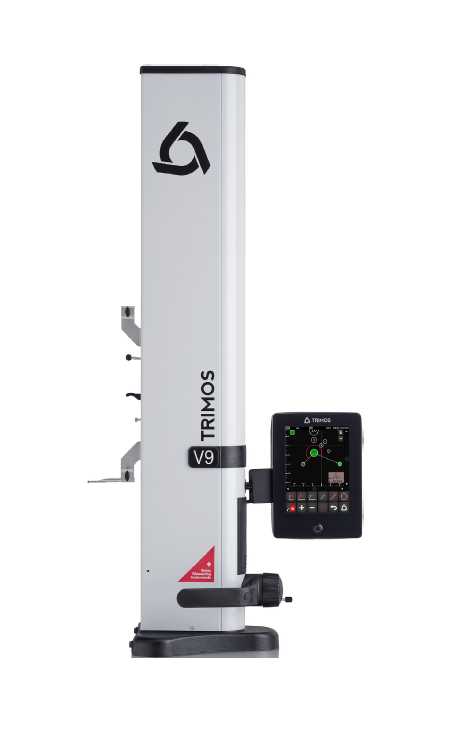

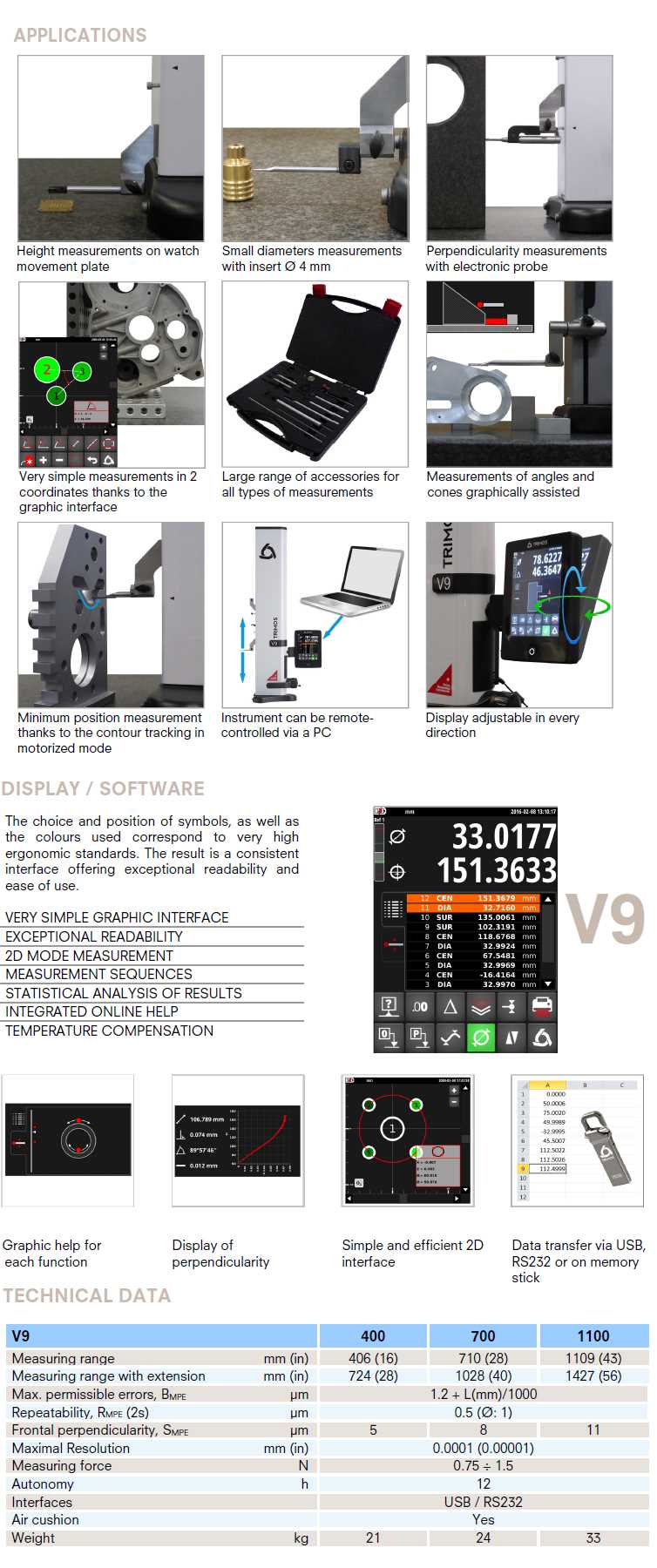

V9 - 2D
The V9 has been developed for the most demanding users. Laboratories and workshops
for whom high level of precision and measuring reliability is required will fully
appreciate this instrument.
No compromise on precision and repeatability is being tolerated for this instrument
where some specific construction and design details differs from other models.
The display, based on an entirely tactile interface, offers a new level of ease of use
never once reached for a vertical measuring instrument. The menus and functions displayed
operate within a very strict philosophy and design to allow for greatest efficiency.
|
|
- MEASURING RANGES 400 to 1100 MM
- EXCEPTIONAL HIGH PRECISION LEVEL
- ELEECTRONICALLY ADJUSTABLE MEASURING FORCE
- MANUAL OR MOTORIZED DISPLACEMENT MODE
- 2D, PROGRAMMING AND STATISCAL CALCULATIONS
- LARGE RANGE OF ACCESSORIES
- ALL ADJUSTMENTS POSSIBLE WITHOUT ADDITIONAL TOOLS
- RS232 and USB INTERFACES
|
| |

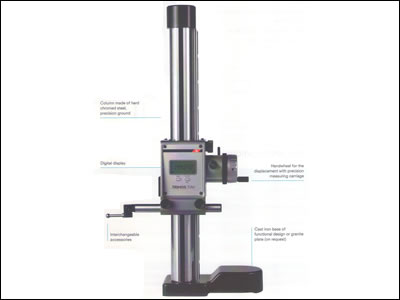

TVM
The TVM instruments are perfect for height measurements and scribing work
and reliable in all kinds of workshop conditions. The result of an unique,
compact design of the instrument is great mobility and extreme stability.
Because of its advanced measuring system, the self-contained working time of the TVM is one year.
Therefore it can be used for multiple applications in the workshop area.
The simplicity of manipulation allows constant change of the user without any time-consuming training.
The success of the TVM among competitive gauges is outstanding.
More than 14000 instruments are in use worldwide.
Three models are available: with application range from 300 to 1000mm.
A large range of accessories for all kinds of measuring applications is available.
- ROBUST AND COMPACT CONSTRUCTION
- PERFECT FOR USE IN PRODUCTION AREA
- ACCURATE AND RELIABLE MEASUREMENTS
- USER FRIENDLY
- OPTO-RS232 DATA OUTPUT
- RECHARGEABLE BATTERY PACK
- TWO MODELS: CAST IRON BASE OR A GRANITE BASE
|
| |

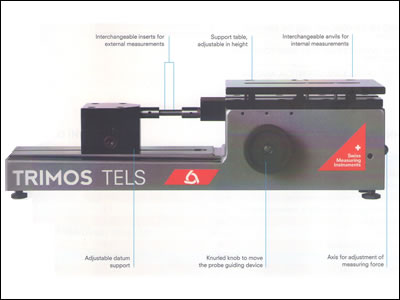

TELS
The Mini-Horizontal TELS is the ideal instrument for checking small dimensions.
It is part of the horizontal instruments family.
The instrument is mainly used for checking internal and external dimensions, such as ring gauges,
plug gauges, thread plug gauges and for measuring precision production parts.
The reliable concept is easily suitable for the use in workshop environment.
An electronic probe and digital display unit or simply a dial indicator can be applied to perform
all measurements. The selection of the measuring system depends on the required accuracy.
The range for internal measurements from 10 to 100mm and external measurements from 0 to 100mm covers
a large number of applications. The absolute measuring range is 25mm and a preset setting is
necessary to obtain an entire length.
A wide range of accessories are available.
- IDEAL FOR CHECKING SMALL DIMENSIONS
- EASY MANIPULATION
- SUITABLE FOR USE IN WORKSHOP AREA
- WIDE SELECTION OF ACCESSORIES
Functions of Sylvac Display Unit:
- Selection of measuring unit mm/inch
- Analog display
- Input and display of tolerance limits
- Classification (2-6 classes)
- Input and setting of preset values
- Inversion of measuring direction (+/-)
- Channel selection
- Value hold
- Locking of the keyboard and the mm/inch selection
- External contact function using foot pedal or computer
- Print-out of value and statistical analysis
|
| |

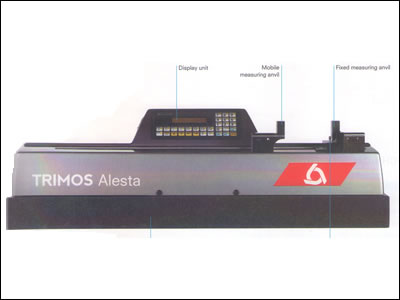

Alesta
The Alesta family is a product that simplifies the setting of 2-point bore gauges.
It replaces the traditional way using a lot of different rings.
Thanks to innovative adapters, a positioning error will be eliminated and the speed of measurements increased.
You just input the dimension into the key board and the required mobile carriage will
position itself automatically onto this position. The mobile carriage system will always
stay in the desired position even when applying a force on the anvils.
The stable granite base combined with a high precision measuring system guarantees
excellent measuring results. Using a tolerance table the carriage can be positioned
to the selected tolerance range. This table can be tailor-made to customer's requirements.
This product achieves a typical return on investment of 2 years. The acquistion of new rings
and their calibration will be eliminated. The instrument range includes 3 models: 300, 500 and 1000mm.
- IDEAL FOR USE IN THE WORKSHOP AREA
- VERY SIMPLE MANIPULATION
- MOTORIZED CARRIAGE MOVEMENT
- STABLE GRANITE BASE
- HIGH PRECISION MEASURING SYSTEM (HEIDENHAIN)
- TOLERANCE DATA BASE
- WIDE SELECTION OF ADAPTERS AND ACCESSORIES
- INTERNAL AND EXTERNAL MEASUREMENT POSSIBLE
|
| |
Horizontal

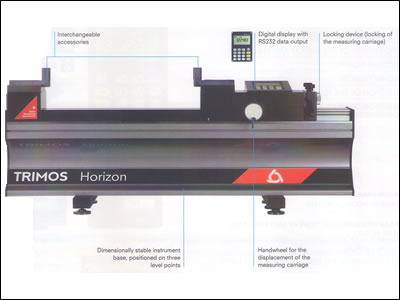

The "Horizon" instruments respond to the current requirements for quality
inspection in manufacturing areas. They allow a quick, precise checking and setting.
The instruments are perfect for setting all kinds of comparative measuring equipment
and for checking length, internal and external diameters, thread gauges etc.
The new innovative concept with incorporated measuring system and display unit ensures
excellent results by easy manipulation and is the answer to various demands
in the field or production. Simplicity of use is an additional valuable advantage.
The instrument range comprises several models, from 500mm up to 2000mm (Granite 3000 - 8000mm).
A wide selection of easy interchangeable accessories completes the application possibilities.
- IDEAL FOR USE IN THE WORKSHOP AREA
- VERY SIMPLE MANIPULATION
- PRECISE CHECKING AND SETTING MADE EASY
- SELF-CONTAINED OPERATION OF APPROX. 100 HOURS
- WIDE SELECTION OF ACCESSORIES
Functions:
- Selection of value: Normal/Min/Max
- Zero setting of the display and preset input
- RS232 date output
- Two references
- Selection of the resolution 0.01mm-0.001mm
- Selection of measuring unit mm/inch (Direct conversion)
|
| |
Horizontal Premium

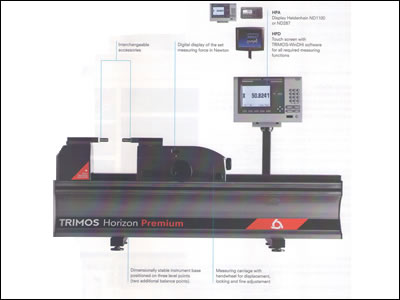

The HORIZON PREMIUM instruments fulfill today's requirements of high accuracy
quality control equipment in production areas and take into consideration
EN ISO 9000 standards.
The instruments may be used in a workshop area or installed in a quality
control room for checking of measuring gauges and setting of all types
of comparative measuring equipment. The well-designed, reliable new concept,
obtained by syperior engineering. ensures high precision and optimum results by
easy manipulation as well as a valuable level of productivity.
The modular design allows the selection between two measuring systems: analog
signal output and Heidenhain display unit or digital signal output and computer with
TFT touch screen and Trimos-Win DHI software.
Instruments with a measuring range from 500 to 3000mm are avaible, all of them
built in one single piece. All measuring ranges being direct, it means that the
whole measuring range is available without adjustment or intermediate re-calibration.
- IDEAL FOR THE USE IN LABORATORY AND IN THE WORKSHOP
- NEW ERGONOMIC CONCEPT
- MEASURING CARRIAGE WITH FINE ADJUSTMENT
- LARGE RANGE OF ACCESSORIES
- ADJUSTABLE MEASURING FORCE
- 3 DISPLAYS AVAILABLE
- MODULAR SYSTEM DESIGN
- DIRECT MEASUREMENT OVER THE WHOLE RANGE
|
| |

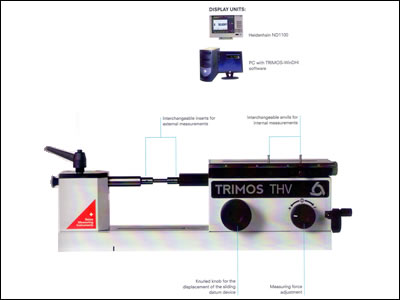

THV
The horizontal THV instrument has been designed for calibration and certification of gauging equipment of small dimension.
It allows easy and precise checking of plug gauges, ring gauges, thread plug gauges,
test and dial indicators as well as measuring of high precision production parts.
The incorporated opto-electronic measuring system guarantees high accuracy.
A separate display unit or a PC with Trimos WinDHI software can be used to display the measurement results.
The THV instruments can also be delivered without measuring system.
An electronic probe or a dial indicator shall then be used as measuring system.
Due to its small size, the THV can be moved easily. It is therefore frequently used as mobile calibration station.
- IDEAL FOR THE USE IN A CLEAN ROOM AND IN THE WORKSHOP AREA
- THE INSTRUMENT MEETS THE REQUIREMENTS OF ALL EN ISO 9000
- VERY SIMPLE MANIPULATION
- LARGE RANGE OF ACCESSORIES
- CHECKING OF INTERNAL AND EXTERNAL DIMENSIONS USING A SINGLE MEASURING ELEMENT
- ACCORDING TO THE APPLICATION, THE INSTRUMENT CAN BE USED IN HORIZONTAL POSITION OR IT CAN BE INCLINED UP TO 90° USING THE ADDITIONAL STAND
|
| |

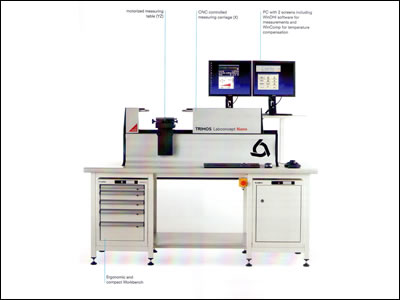

LabConcept Premium

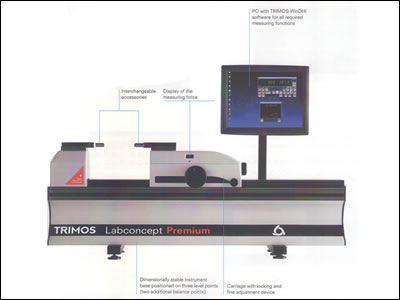

The Labconcept and Labconcept Premium are high precision calibration systems
that meet the most sophisticated requirements.
The up-to-date, well designed modular concept emables extremely secure functioning,
facilitates the manipulation and therefore increases the productivity in the
measuring laboratory. Simplicity and high accuracy have been associated.
This new concept, integrating a computer and a touch screen as well as the appropriate
Trimos-WinDHI software with all necessary measuring functions guarantees
the best results. A temperature compensation system as well as a gauge management
system can be installed to enhance the system performance.
Instruments with a measuring range from 300 to 2000mm are available, all made in a
single piece. All measuring ranges being direct, it means that the whole measuring range
is available without adjustment or intermediate re-calibration.
- MEETS THE REQUIRMENTS OF ALL EN ISO 9000
- PC WITH EXCLUSIVE SOFTWARE WINDHI
- HIGH PRECISION MEASURING SYSTEM
- DIMENSIONALLY STABLE INSTRUMENT BASE
- ADUSTABLE MEASURING FORCE (FROM O TO 12N)
- LARGE RANGE OF ACCESSORIES
- DIRECT MEASUREMENT OVER THE WHOLE MEASURING RANGE
|
| |
LabConcept Nano
No compromise on accuracy
The Labconcept Nano is a new reference in the field of dimensional metrology.
It integrates 40 years of knowledge and continuous improvement.
It is a remarkable instrument for all measuring tasks that require extremely high accuracy.
The uncompromising design of the Labconcept Nano offers an ideal and
performing platform for checking and calibration of all kinds of
gauges and measuring instruments. Checking of internal and external dimensions
will be done as a fully automatic procedure by the three motorized axes XYZ and
the legendary simplicity of use of Trimos WinDHI software.
The Labconcept Nano is completely designed and manufactured in Switzerland
according to the highest quality standards. Robustness, reliability and longevity are our traditional values.
A New Technological Dimension
The Labconcept Nano combines tradition, experience and a strong tecnological lead.
It integrates the latest measuring and motorisation technologies and can be considered
as the first "full digital" calibration instrument. A regular PC controls all electroninc components.
This low-power solution avoids heating and keeps the energy, maintenance and repair costs at a reasonable level.
The linear bearings used in all guideways have proven their superiority over all other
technologies in terms of precision, wear, rigidity, temperature stability, reliability,
dust protection and maintenance. They ensure exceptional repeatability and precision through time.
- UNEQUALLED HIGH LEVEL OF ACCURACY
- EXCEPTIONAL REPEATABILITY
- MOTORIZED MEASURING CARRIAGE, X AXIS, SELECTION OF SPEED BY SOFTWARE
- MOTORIZED UNIVERSAL MEASURING TABLE, CNC Y AND Z AXIS WITH INTEGRATED MEASURING SYSTEM
- MEASURING FORCE (0-12N) AND LOCKING OF MEASURING ANVIL PERFORMED BY SOFTWARE
- INTEGRATED TEMPERATURE COMPENSATION SYSTEM
- ABSOLUTE MEASURING RANGE ON ALL MODELS: 350MM
- APPLICATION RANGES OF 350, 600 AND 1100MM
- MEASURING OF PARTS UP TO 60KG IN WEIGHT
- 2 SCREENS IN THE STANDARD PACKAGE
- CNC CONTROLLED MEASUREMENTS EVEN ON DIAMETERS AND THREADS
|
| |

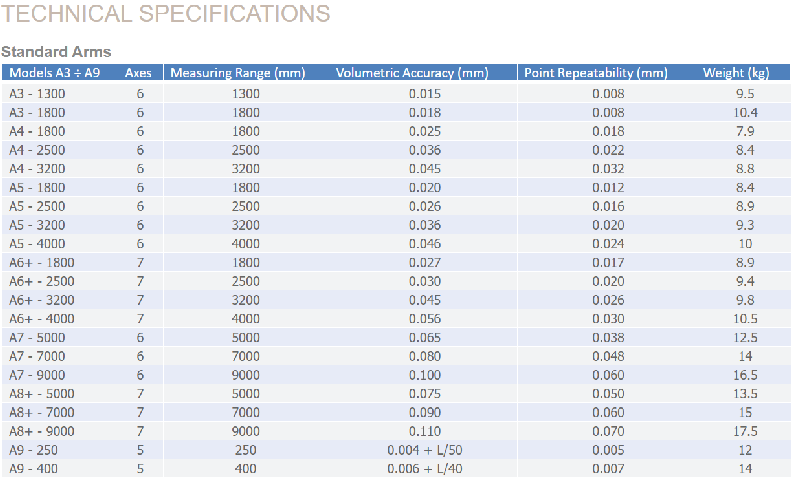

PORTABLE MEASURING ARMS - A-LINE
Extremely easy and accurate 3D measurement for quality control, inspection, or verification of small and large size parts.
Models: A3, A4, A5, A6+, A7, A8+, A9
Trimos A-line portable articulated measuring arms allow an extremely easy and accurate 3D measurement.
The A-line arms certified according to ISO10360-12 or ISO10360-02 standard allow quality control,
inspection, verification of small and large size parts. Thanks to an extremely stable carbon structure,
all models are light and easy to operate. You can choose between the A3, A4, A5, A6+, A7, A8+, A9 and
AT models according to your application.
Different Laser Scanners can be combined with our 7 axes arms for a complex-profile contour scanning .
All Laser Scanners can be quickly applied to the rotating 7th axis of the arm.

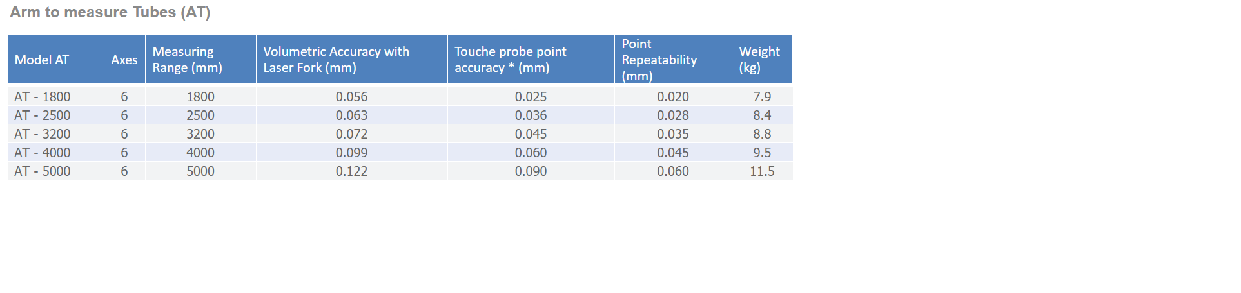

For pipe inspection with laser fork and a dedicated software Trimos AT is the perfect equipment.
Based on the A5 and A6 arm design, this portable articulated arm is ideal for quick and accurate
inspection of pipes and any other parts within its range.
All arms may be provided with a wireless Bluetooth device, batteries or the two options for a complete wireless portability.
- MEASURING RANGES FROM 250 MM to 9000 MM
- PORTABLE MEASURING INSTRUMENT
- EXTREMELY EASY TO USE
- CERTIFIEDD ACCODING TO ISO 10360-12 STANDARD
- EXIST IN 5, 6 OR 7 AXIS CONFIGURATION
- PROTECTION WITH ELECTROMAGNETIC BRAKE
- LASER SCANNERS FOR THE 7 AXES ARMS
|
| |

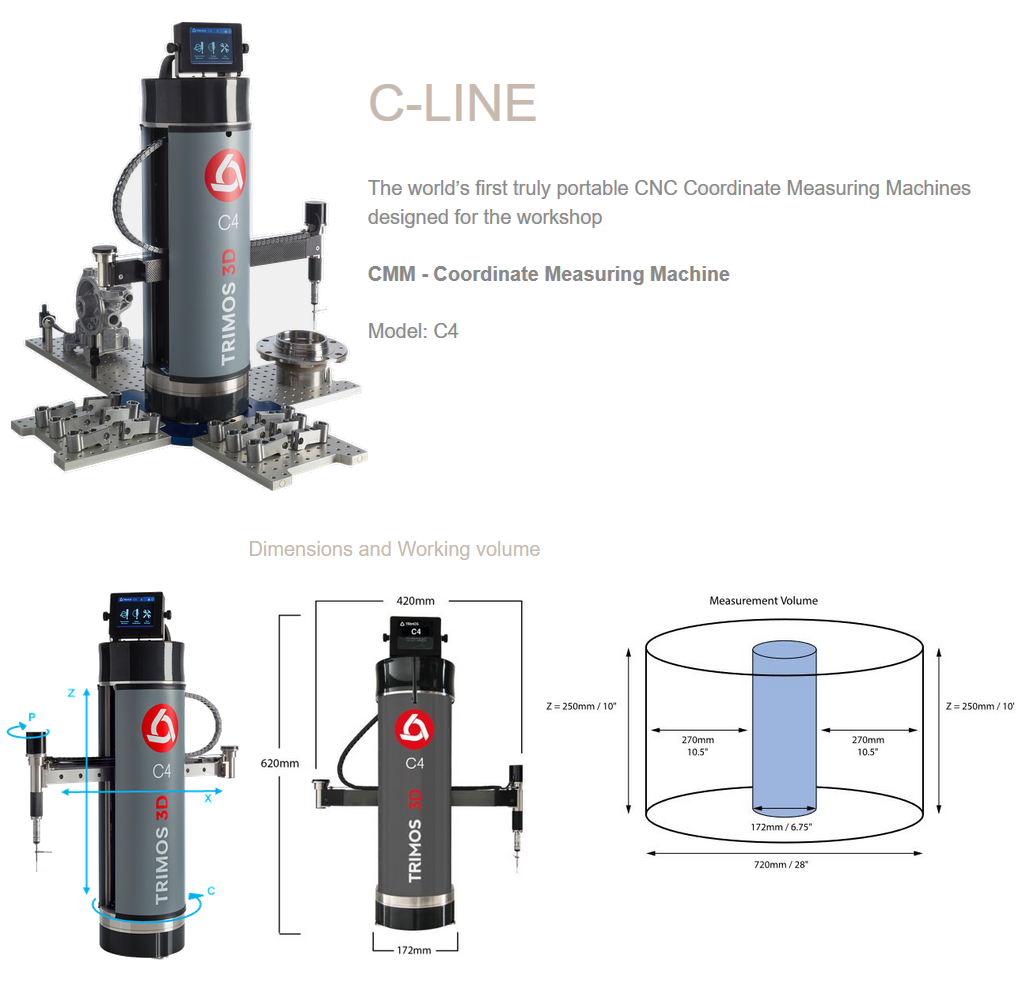

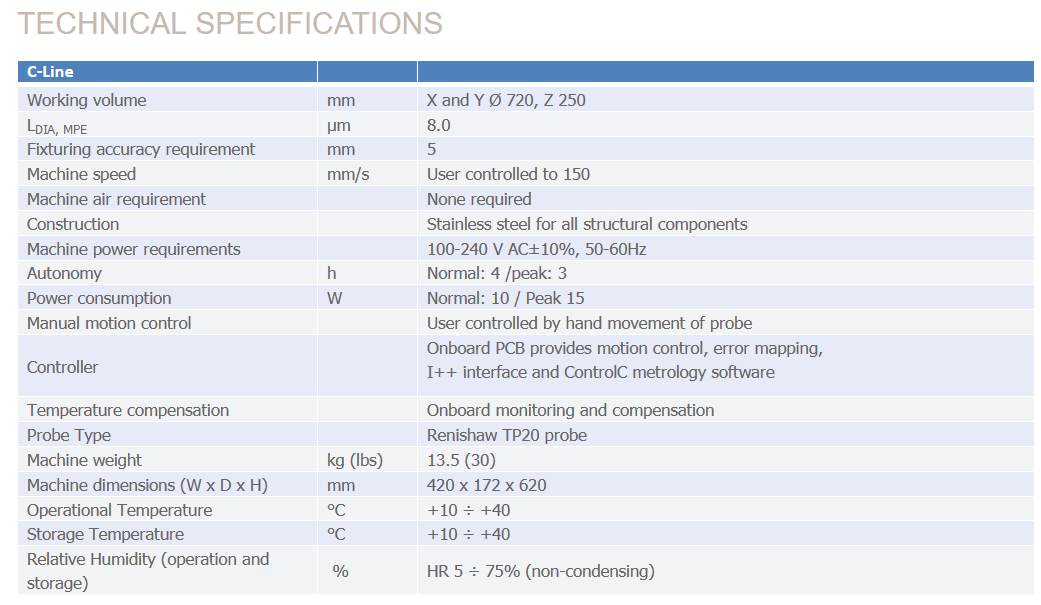

Portable CMM CNC - C-Line
Easy-of-Use: The C-Line is extremely easy to operate using a portable PC.
The concept of this product has been thoroughly thought through for optimal user experience and ease-of-use.
Trimos new C-Line is the world’s first truly portable CNC Coordinate Measuring
Machines designed for the workshop. This product line is part of the new TRIMOS 3D product group.
Portable: At only 13.5 kg, the CNC C-Line goes with you wherever you need it.
No longer are you required to take the part to the CMM, the C-Line can be
deployed directly as part of the manufacturing process.
Software: The C-Line is delivered standard with the ControlC software,
which allows you to perform many type of measurements: distance, circle, plane, line,
point.
To take full advantage of the performance of the C4, we advise the use of optional Aberlink software,
a 3D software offering the advantage of ease of use. Other measurement software are compatible
including PolyWorks, CMM Manager, Verisurf etc.
Models: The C4 is the premium model of our new portable CNC CMMs. It has 4 axes motorized.
(X, C, Z, P) allowing for high performance measurements in 3D. Another entry model of
our new portable CMMs, C3, comprises of 3 axes motorized (X, C, Z) allowing for basic 3D measurements.
- Portable for the maximum of flexibility
- 3 or 4 axes models
- High precision using Renishaw TP20 probe
- Small foot print
- Fully CNC combined with manual operation
- Ease of use with Aberlink software
- 3D complement to the height gage 1D/2D
- Designed for workshop operation
- Ethernet or wireless communication
- Extremely easy to use
|
| |

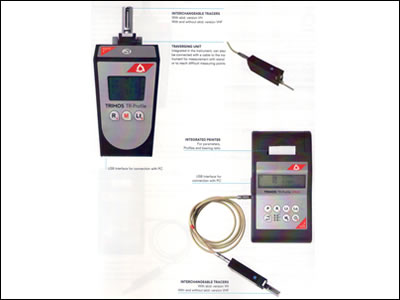

TR Profile
The TR Profile and TR Profile DH-8 are extremely precise surface roughness measuring instruments,
built for the use in the workshop and on production lines as well as in the lab.
From the simple roughness measurement without accessories, directly on the machine,
to the measurements in the laboratory with measuring support, special tracers and other
accessories, including the recording of contours, the TR Profile and TR Profile DH-8
offer maximum flexibility for surface analysis.
The tracers are the core pieces of the roughness meters. They are, to a wide extent,
the determining factor of the precision of the measuring values obtained. The great
choice of tracers is the result of decades of experience in the construction of such
probes. The traversing unit with an integrated reference flat allows to effect precise
measurements also with skidless tracers (VHF versions). The traversing units of TR Profile
and TR Profile DH-8 are identical.
All instruments can be connected to a PC. They are delivered with a simple analysis software.
- LINEARITY AND MEASURING ACCURACY
- APPLICATION FLEXIBILITY
- LARGE RANGE OF ACCESSORIES
- REMOVABLE TRAVERSING UNITS
- RECHARGEABLE BATTERY FOR MOBILE APPLICATIONS
- TRACERS WITH AND WITHOUT SKID
- EASE OF USE
|
|
Products - TRIMOS
